Product description

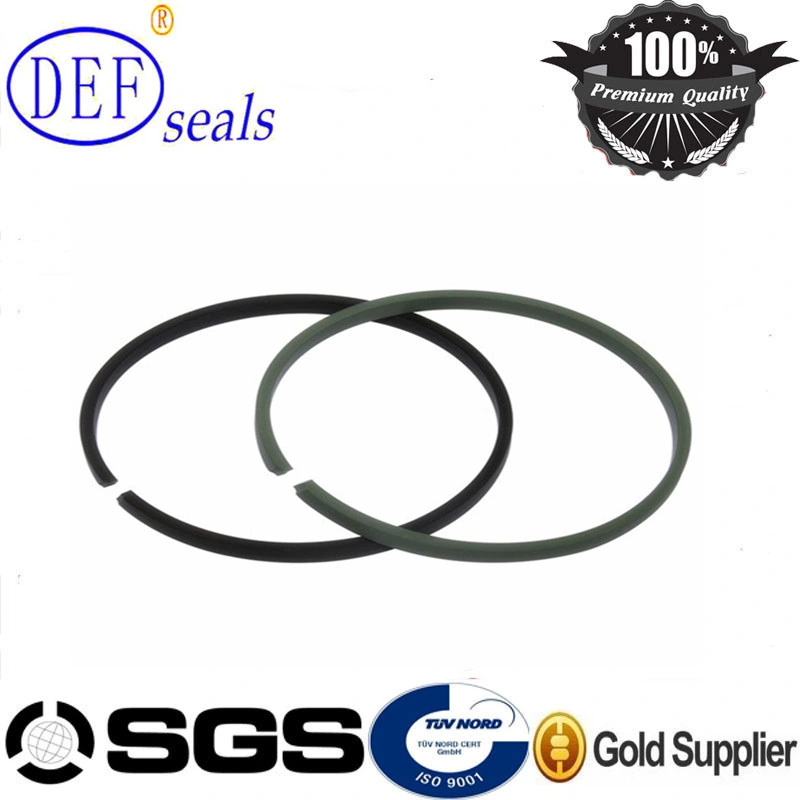

This seal is used for moving piston and rod in cylinder. With good guide effect,it can absorb radial force anytime,prevent metal-to-metal contact in the cylinder,and reduce the friction. DEF have many material available for guide ring according to your specific requirements.
Application Range.
Pressure (MPa): 35
Temperature [° C]: -55...+160
Sliding speed[m/s]: 1.5
Medium: Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.
Material
PTFE
Application
Excavators
Construction Machinery
1.How can you get sample free?
Answer: Sample free to you but your side pay the freight charge.
2.Could I make it according to my structure drawing?
Answer: Of course, we can make from your structure drawing.
3.Why choose Guangdong DEF Seals solutions Co., Ltd ?
1.Professional and reliability.
2.Complete production line, quickly delivery.
3.Advanced equipments, high quality and competitive price.
4.We have a heart like fire.
5.We are ready to serve you all the time.
Add: Dinghao Automation Incubators, Liaobu Town, Dongguan City, Guangdong Province, China 523410
This seal is used for moving piston and rod in cylinder. With good guide effect,it can absorb radial force anytime,prevent metal-to-metal contact in the cylinder,and reduce the friction. DEF have many material available for guide ring according to your specific requirements.
Application Range.
Pressure (MPa): 35
Temperature [° C]: -55...+160
Sliding speed[m/s]: 1.5
Medium: Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.
Material
PTFE
Application
Excavators
Construction Machinery
| Order Number | D | d | H | h | Order Number | D | d | H | h | |
| KZT 20x14x5 | 20 | 14 | 5.2 | 5 | KZT 55x49x5 | 55 | 49 | 5.2 | 5 | |
| KZT 25x19x5 | 25 | 19 | 5.2 | 5 | KZT 56x50x5 | 56 | 50 | 5.2 | 5 | |
| KZT 30x24x5 | 30 | 24 | 5.2 | 5 | KZT 60x54x5 | 60 | 54 | 5.2 | 5 | |
| KZT 31.5x25.5x5 | 31.5 | 25.5 | 5.2 | 5 | KZT 63x55x6 | 63 | 55 | 6.2 | 6 | |
| KZT 32x26x5 | 32 | 26 | 5.2 | 5 | KZT 65x57x6 | 65 | 57 | 6.2 | 6 | |
| KZT 35x29x5 | 35 | 29 | 5.2 | 5 | KZT 70x62x6 | 70 | 62 | 6.2 | 6 | |
| KZT 35.5x29.5x5 | 35.5 | 29.5 | 5.2 | 5 | KZT 70x65x14.8 | 70 | 65 | 15 | 14.8 | |
| KZT 40x34x5 | 40 | 34 | 5.2 | 5 | KZT 71x63x6 | 71 | 63 | 6.2 | 6 | |
| KZT 45x39x5 | 45 | 39 | 5.2 | 5 | KZT 75x67x6 | 75 | 67 | 6.2 | 6 | |
| KZT 50x44x5 | 50 | 44 | 5.2 | 5 | KZT 75x70x14.8 | 75 | 70 | 15 | 14.8 | |
| KZT 53x47x5 | 53 | 47 | 5.2 | 5 | KZT 80x72x6 | 80 | 72 | 6.2 | 6 | |
| KZT 80x72x14.8 | 80 | 72 | 15 | 14.8 | KZT 112x104x6 | 112 | 104 | 6.2 | 6 | |
| KZT 80x75x9.5 | 80 | 75 | 9.7 | 9.5 | KZT 115x107x6 | 115 | 107 | 6.2 | 6 | |
| KZT 80x75x14.8 | 80 | 75 | 15 | 14.8 | KZT 115x107x7.9 | 115 | 107 | 8 | 7.9 | |
| KZT 85x77x6 | 85 | 77 | 6.2 | 6 | KZT 115x107x9.5 | 115 | 107 | 9.7 | 9.5 | |
| KZT 85x77x14.8 | 85 | 77 | 15 | 14.8 | KZT 115x107x14.8 | 115 | 107 | 15 | 14.8 | |
| KZT 85x80x9.5 | 85 | 80 | 9.7 | 9.5 | KZT 115x110x14.8 | 115 | 110 | 15 | 14.8 | |
| KZT 85x80x14.8 | 85 | 80 | 15 | 14.8 | KZT 120x112x6 | 120 | 112 | 6.2 | 6 | |
| KZT 90x82x6 | 90 | 82 | 6.2 | 6 | KZT 120x112x7.9 | 120 | 112 | 8 | 7.9 | |
| KZT 90x82x14.8 | 90 | 82 | 15 | 14.8 | KZT 120x112x9.5 | 120 | 112 | 9.7 | 9.5 | |
| KZT 90x85x9.5 | 90 | 85 | 9.7 | 9.5 | KZT 120x112x14.8 | 120 | 112 | 15 | 14.8 | |
| KZT 90x85x14.8 | 90 | 85 | 15 | 14.8 | KZT 120x115x14.8 | 120 | 115 | 15 | 14.8 | |
| KZT 95x87x6 | 95 | 87 | 6.2 | 6 | KZT 125x117x6 | 125 | 117 | 6.2 | 6 | |
| KZT 95x87x14.8 | 95 | 87 | 15 | 14.8 | KZT 125x117x7.9 | 125 | 117 | 8 | 7.9 | |
| KZT 95x90x9.5 | 95 | 90 | 9.7 | 9.5 | KZT 125x117x9.5 | 125 | 117 | 9.7 | 9.5 | |
| KZT 95x90x14.8 | 95 | 90 | 15 | 14.8 | KZT 125x117x14.8 | 125 | 117 | 15 | 14.8 | |
| KZT 100x92x6 | 100 | 92 | 6.2 | 6 | KZT 125x120x14.8 | 125 | 120 | 15 | 14.8 | |
| KZT 100x92x7.9 | 100 | 92 | 8 | 7.9 | KZT 130x122x6 | 130 | 122 | 6.2 | 6 | |
| KZT 100x92x9.5 | 100 | 92 | 9.7 | 9.5 | KZT 130x122x7.9 | 130 | 122 | 8 | 7.9 | |
| KZT 100x92x14.8 | 100 | 92 | 15 | 14.8 | KZT 130x122x9.5 | 130 | 122 | 9.7 | 9.5 | |
| KZT 100x95x9.5 | 100 | 95 | 9.7 | 9.5 | KZT 130x122x14.8 | 130 | 122 | 15 | 14.8 | |
| KZT 100x95x14.8 | 100 | 95 | 15 | 14.8 | KZT 130x125x14.8 | 130 | 125 | 15 | 14.8 | |
| KZT 105x97x6 | 105 | 97 | 6.2 | 6 | KZT 135x127x6 | 135 | 127 | 6.2 | 6 | |
| KZT 105x97x7.9 | 105 | 97 | 8 | 7.9 | KZT 135x127x7.9 | 135 | 127 | 8 | 7.9 | |
| KZT 105x97x9.5 | 105 | 97 | 9.7 | 9.5 | KZT 135x127x9.5 | 135 | 127 | 9.7 | 9.5 | |
| KZT 105x97x14.8 | 105 | 97 | 15 | 14.8 | KZT 135x127x14.8 | 135 | 127 | 15 | 14.8 | |
| KZT 105x100x14.8 | 105 | 100 | 15 | 14.8 | KZT 140x132x6 | 140 | 132 | 6.2 | 6 | |
| KZT 110x102x6 | 110 | 102 | 6.2 | 6 | KZT 140x132x7.9 | 140 | 132 | 8 | 7.9 | |
| KZT 110x102x7.9 | 110 | 102 | 8 | 7.9 | KZT 140x132x9.5 | 140 | 132 | 9.7 | 9.5 | |
| KZT 110x102x9.5 | 110 | 102 | 9.7 | 9.5 | KZT 145x137x6 | 145 | 137 | 6.2 | 6 | |
| KZT 110x102x14.8 | 110 | 102 | 15 | 14.8 | KZT 145x137x7.9 | 145 | 137 | 8 | 7.9 | |
| KZT 110x105x14.8 | 110 | 105 | 15 | 14.8 | KZT 145x137x9.5 | 145 | 137 | 9.7 | 9.5 | |
| KZT 150x142x6 | 150 | 142 | 6.2 | 6 | KZT 200x192x8 | 200 | 192 | 8.2 | 8 | |
| KZT 150x142x7.9 | 150 | 142 | 8 | 7.9 | KZT 210x202x8 | 210 | 202 | 8.2 | 8 | |
| KZT 150x142x9.5 | 150 | 142 | 9.7 | 9.5 | KZT 220x212x8 | 220 | 212 | 8.2 | 8 | |
| KZT 155x147x6 | 155 | 147 | 6.2 | 6 | KZT 224x216x8 | 224 | 216 | 8.2 | 8 | |
| KZT 155x147x7.9 | 155 | 147 | 8 | 7.9 | KZT 230x222x8 | 230 | 222 | 8.2 | 8 | |
| KZT 155x147x9.5 | 155 | 147 | 9.7 | 9.5 | KZT 240x232x8 | 240 | 232 | 8.2 | 8 | |
| KZT 160x152x6 | 160 | 152 | 6.2 | 6 | KZT 250x242x8 | 250 | 242 | 8.2 | 8 | |
| KZT 160x152x7.9 | 160 | 152 | 8 | 7.9 | KZT 260x252x8 | 260 | 252 | 8.2 | 8 | |
| KZT 160x152x9.5 | 160 | 152 | 9.7 | 9.5 | KZT 270x262x8 | 270 | 262 | 8.2 | 8 | |
| KZT 165x157x6 | 165 | 157 | 6.2 | 6 | KZT 280x272x8 | 280 | 272 | 8.2 | 8 | |
| KZT 165x157x7.9 | 165 | 157 | 8 | 7.9 | KZT 290x282x8 | 290 | 282 | 8.2 | 8 | |
| KZT 165x157x9.5 | 165 | 157 | 9.7 | 9.5 | KZT 300x292x8 | 300 | 292 | 8.2 | 8 | |
| KZT 170x162x6 | 170 | 162 | 6.2 | 6 | KZT 310x302x8 | 310 | 302 | 8.2 | 8 | |
| KZT 170x162x7.9 | 170 | 162 | 8 | 7.9 | KZT 320x312x8 | 320 | 312 | 8.2 | 8 | |
| KZT 170x162x8 | 170 | 162 | 8.2 | 8 | KZT 340x332x8 | 340 | 332 | 8.2 | 8 | |
| KZT 170x162x9.5 | 170 | 162 | 9.7 | 9.5 | KZT 350x342x8 | 350 | 342 | 8.2 | 8 | |
| KZT 175x167x9.5 | 175 | 167 | 9.7 | 9.5 | KZT 360x352x8 | 360 | 352 | 8.2 | 8 | |
| KZT 180x172x7.9 | 180 | 172 | 8 | 7.9 | ||||||
| KZT 180x172x8 | 180 | 172 | 8.2 | 8 | ||||||
| KZT 180x172x9.5 | 180 | 172 | 9.7 | 9.5 | ||||||
| KZT 185x177x9.5 | 185 | 177 | 9.7 | 9.5 | ||||||
| KZT 190x182x7.9 | 190 | 182 | 8 | 7.9 | ||||||
| KZT 190x182x8 | 190 | 182 | 8.2 | 8 | ||||||
| KZT 190x182x9.5 | 190 | 182 | 9.7 | 9.5 | ||||||
1.How can you get sample free?
Answer: Sample free to you but your side pay the freight charge.
2.Could I make it according to my structure drawing?
Answer: Of course, we can make from your structure drawing.
3.Why choose Guangdong DEF Seals solutions Co., Ltd ?
1.Professional and reliability.
2.Complete production line, quickly delivery.
3.Advanced equipments, high quality and competitive price.
4.We have a heart like fire.
5.We are ready to serve you all the time.
| MOQ(Pcs) | 50 |
| FOB | FOB Shenzhen |
| Method of payment | T/T (bank account, paypal,western union) |
| Delivery time | 5 to 7 working days, 2 days for in stock |
| Supply ability | 5000000Pcs/Month |
| Packaging | plastic film for inner packaging and cartons for outer packaging |
| Export market | South Asia, Southest Asia, Europe, South America, North America, Africa, Middle East, Australia |
Add: Dinghao Automation Incubators, Liaobu Town, Dongguan City, Guangdong Province, China 523410
